Fleet enrollment tokens

A Fleet enrollment token (referred to as an enrollment API key in the Fleet API documentation) is an Elasticsearch API key that you use to enroll one or more Elastic Agents in Fleet. The enrollment token enrolls the Elastic Agent in a specific agent policy that defines the data to be collected by the agent and which output to use. You can use the token as many times as needed. It will remain valid until you revoke it.

The enrollment token is used for the initial communication between Elastic Agent and Fleet Server. After the initial connection request from Elastic Agent, Fleet Server passes a communication API key to the agent. This API key includes only the necessary permissions to communicate with Fleet Server. If the API key is invalid, Fleet Server stops communicating with Elastic Agent.

Depending on the output of the agent policy with which the enrollment token is associated, Fleet Server also passes additional data to Elastic Agent:

• For the Elasticsearch and remote Elasticsearch outputs, it passes an output API key.

  This API key is used to send data to Elasticsearch. It has the minimal permissions needed to ingest all the data specified by the agent policy. If the API key is invalid, Elastic Agent stops ingesting data into Elasticsearch.

• For the Kafka output, it passes authentication parameters.

  The authentication parameters are defined in the authentication settings of the Kafka output and are used by Elastic Agent to authenticate with the Kafka cluster before sending data to it.

• For the Logstash output, it passes SSL/TLS configuration details.

  The SSL/TLS configuration details such as the SSL certificate authority, the SSL certificate, and the SSL certificate key are defined during Logstash output creation. Elastic Agent uses SSL/TLS client authentication to authenticate with the Logstash pipeline before sending data to it.

Create enrollment tokens and use them to enroll Elastic Agents in specific policies.

To create an enrollment token:

1. In Kibana, go to Management → Fleet → Enrollment tokens.

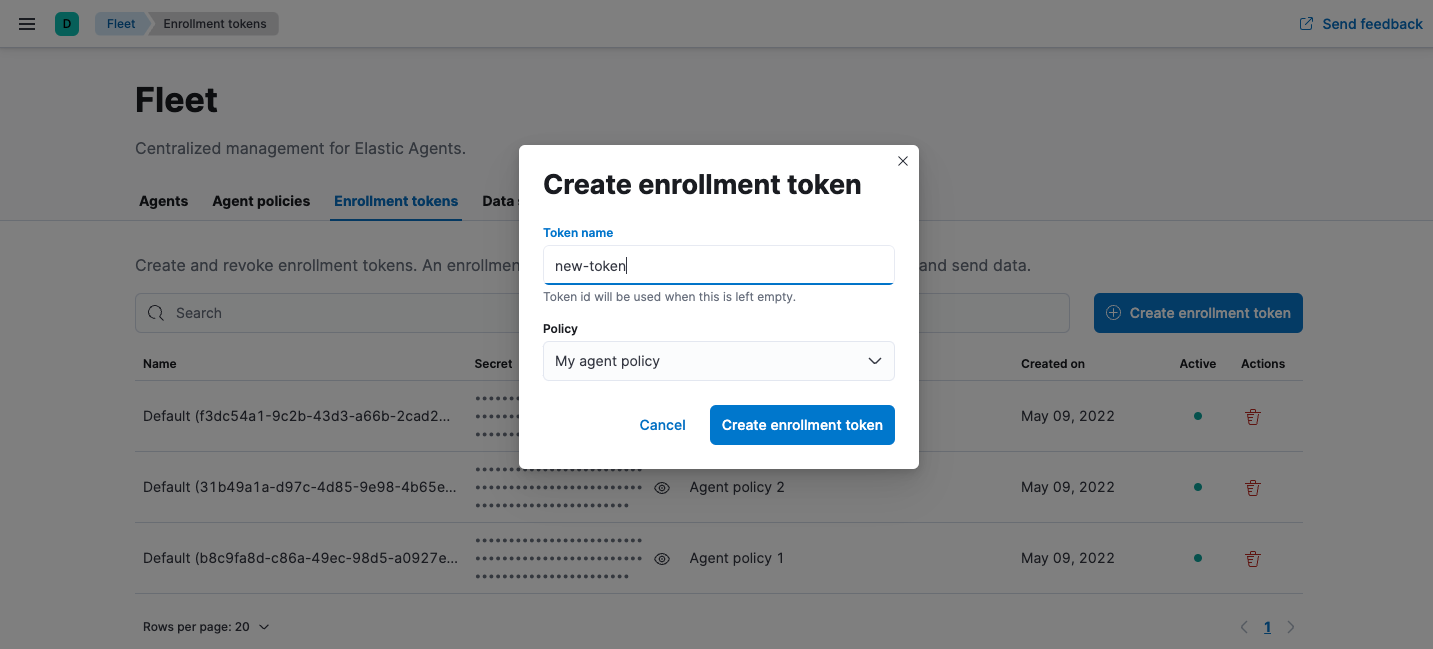

2. Click Create enrollment token. Name your token and select an agent policy.

   Note that the token name you specify must be unique so as to avoid conflict with any existing API keys.


   ×

3. Click Create enrollment token.

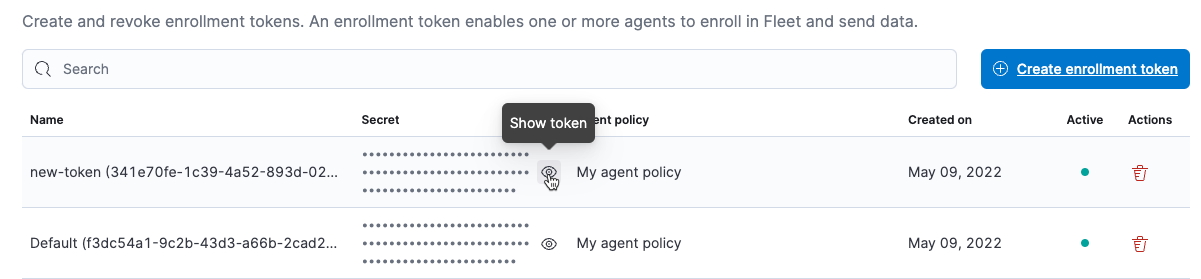

4. In the list of tokens, click the Show token icon to see the token secret.


   ×

All Elastic Agents enrolled through this token will use the selected policy unless you assign or enroll them in a different policy.

To learn how to install Elastic Agents and enroll them in Fleet, refer to Install Elastic Agents.

You can revoke an enrollment token that you no longer wish to use to enroll Elastic Agents in an agent policy in Fleet. Revoking an enrollment token essentially invalidates the API key used by agents to communicate with Fleet Server.

To revoke an enrollment token:

1. In Fleet, click Enrollment tokens.

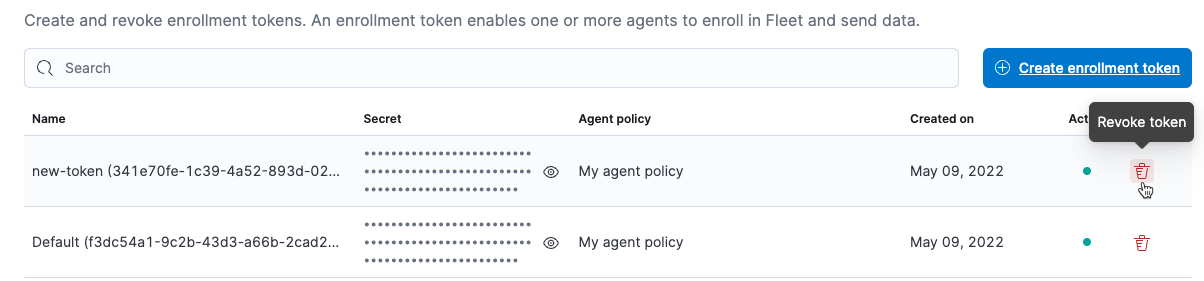

2. Find the token you want to revoke in the list and click the Revoke token icon.


   ×

3. Click Revoke enrollment token. You can no longer use this token to enroll Elastic Agents. However, the currently enrolled agents will continue to function.

   To re-enroll your Elastic Agents, use an active enrollment token.

Note that when an enrollment token is revoked it is not immediately deleted. Deletion occurs automatically after the duration specified in the Elasticsearch xpack.security.authc.api_key.delete.retention_period setting has expired (see Invalidate API key API for details).

Until the enrollment token has been deleted:

• The token name may not be re-used when you create an enrollment token.
• The token continues to be visible in the Fleet UI.
• The token continues to be returned by a GET /api/fleet/enrollment_api_keys API request. Revoked enrollment tokens are identified as "active": false.
