Airlock Digital Integration for Elastic
Serverless Observability Serverless Security Stack
| Version | 0.3.0 (View all) |
| Subscription level What's this? |
Basic |
| Level of support What's this? |
Elastic |
| Ingestion method(s) | API |
Airlock Digital delivers an easy-to-manage and scalable application control solution to protect endpoints with confidence. Built by cybersecurity professionals and trusted by organizations worldwide, Airlock Digital enforces a Deny by Default security posture to block all untrusted code, including unknown applications, unwanted scripts, malware, and ransomware.
The Airlock Digital integration for Elastic allows you to collect logs from, Airlock Digital REST API, then visualise the data in Kibana.
The Airlock Digital integration is compatible with version v6.1.x of Airlock Digital and v1 of the REST API.
This integration periodically queries the Airlock Digital REST API to retrieve Agent, Execution Histories and Server Activities logs.
This integration collects log messages of the following types:
Agent: Collects agent logs via Airlock Digital REST API.Execution Histories: Collects executions history logs via Airlock Digital REST API.Server Activities: Collects server activity logs via Airlock Digital REST API.
Integrating Airlock Digital agent, execution history, and server activity logs with Elastic SIEM delivers comprehensive visibility into endpoint and system operations. Dashboards highlight agent health, user and host activity, OS distribution, policy enforcement, storage status, trusted configurations, and execution behaviors such as blocked or untrusted runs and policy violations. At the same time, monitoring server-side activities across tasks, users, and root actions enables quick identification of unauthorized changes, policy misuse, and suspicious behavior. Together, these insights empower SOC teams to accelerate investigations, strengthen compliance, optimize resource management, and maintain stronger endpoint and system security.
- In order to make the API calls, the User Group to which a user belongs should contain required permissions. You can follow the below steps for that:
- Go to the Settings and navigate to Users tab.
- Under User Group Management for the respective user group provide agent/find, group/policies, logging/exechistories and logging/svractivities roles in the REST API Roles section and click on save.
- Log in to your Airlock console.
- On the right side of the navigation bar, click on the dropdown with the user’s name and navigate to My profile section.
- Click on the Generate API Key button.
- Copy the displayed API key — it will be required later for configuration.
For more details, check Documentation.
This integration supports both Elastic Agentless-based and Agent-based installations.
Agentless integrations allow you to collect data without having to manage Elastic Agent in your cloud. They make manual agent deployment unnecessary, so you can focus on your data instead of the agent that collects it. For more information, refer to Agentless integrations and the Agentless integrations FAQ.
Agentless deployments are only supported in Elastic Serverless and Elastic Cloud environments. This functionality is in beta and is subject to change. Beta features are not subject to the support SLA of official GA features.
Elastic Agent must be installed. For more details, check the Elastic Agent installation instructions. You can install only one Elastic Agent per host.
In the top search bar in Kibana, search for Integrations.
In the search bar, type Airlock Digital.
Select the Airlock Digital integration from the search results.
Select Add Airlock Digital to add the integration.
Enable and configure only the collection methods which you will use.
To Collect Airlock Digital logs via API, you'll need to:
- Configure URL and API Key.
- Enable/Disable the required datasets.
- For each dataset, adjust the integration configuration parameters if required, including the Interval, Preserve original event etc. to enable data collection.
Select Save and continue to save the integration.

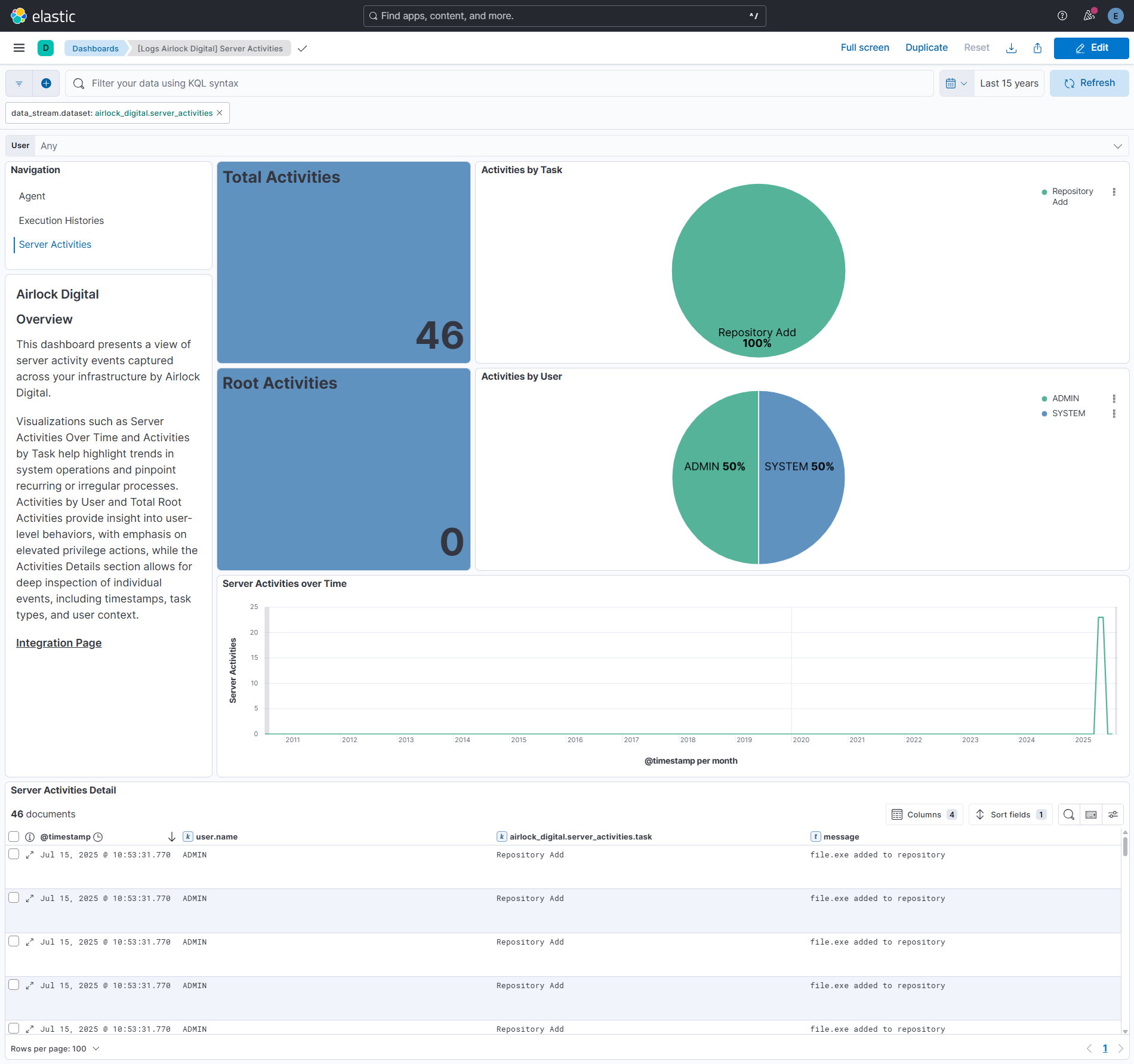

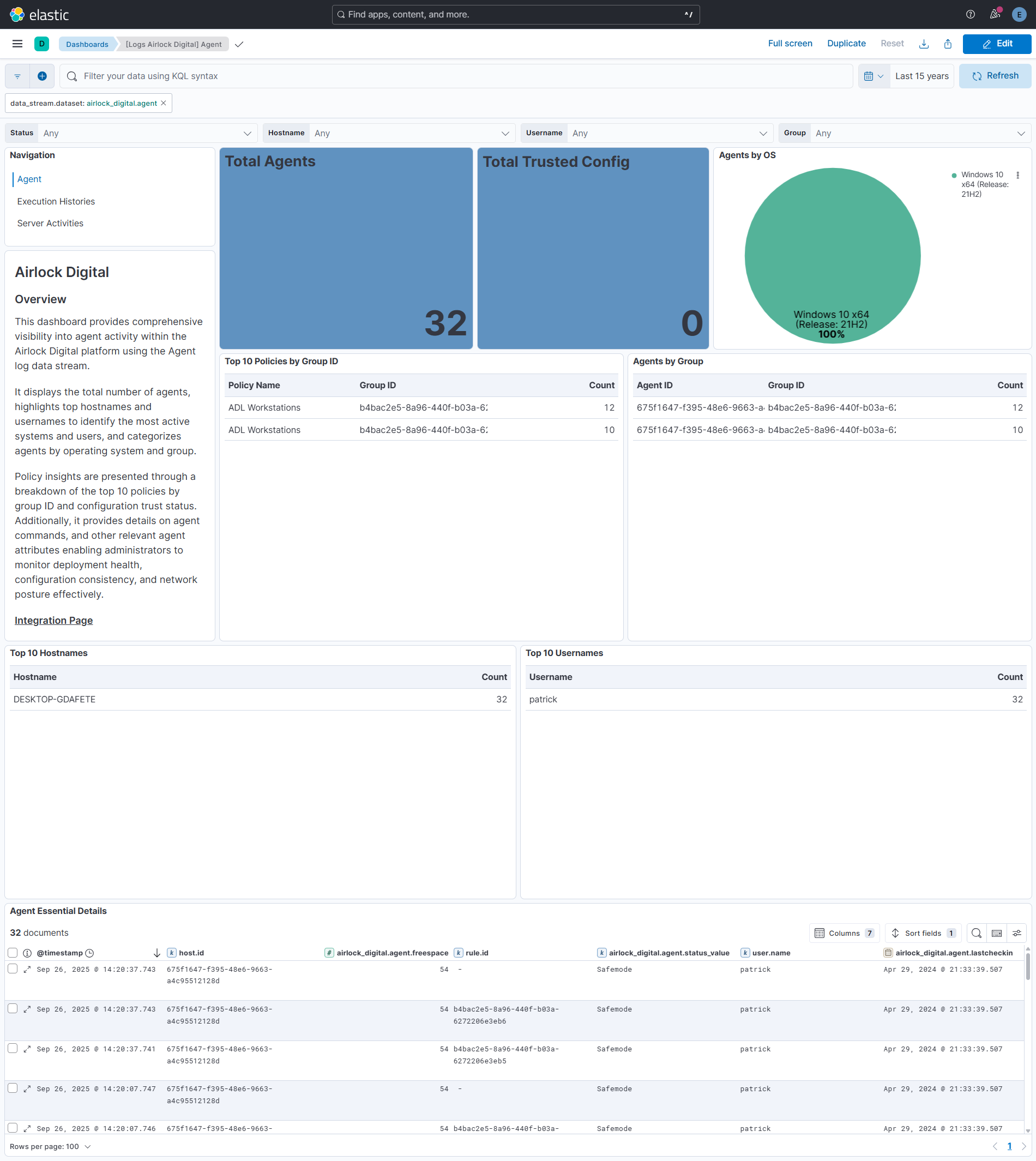

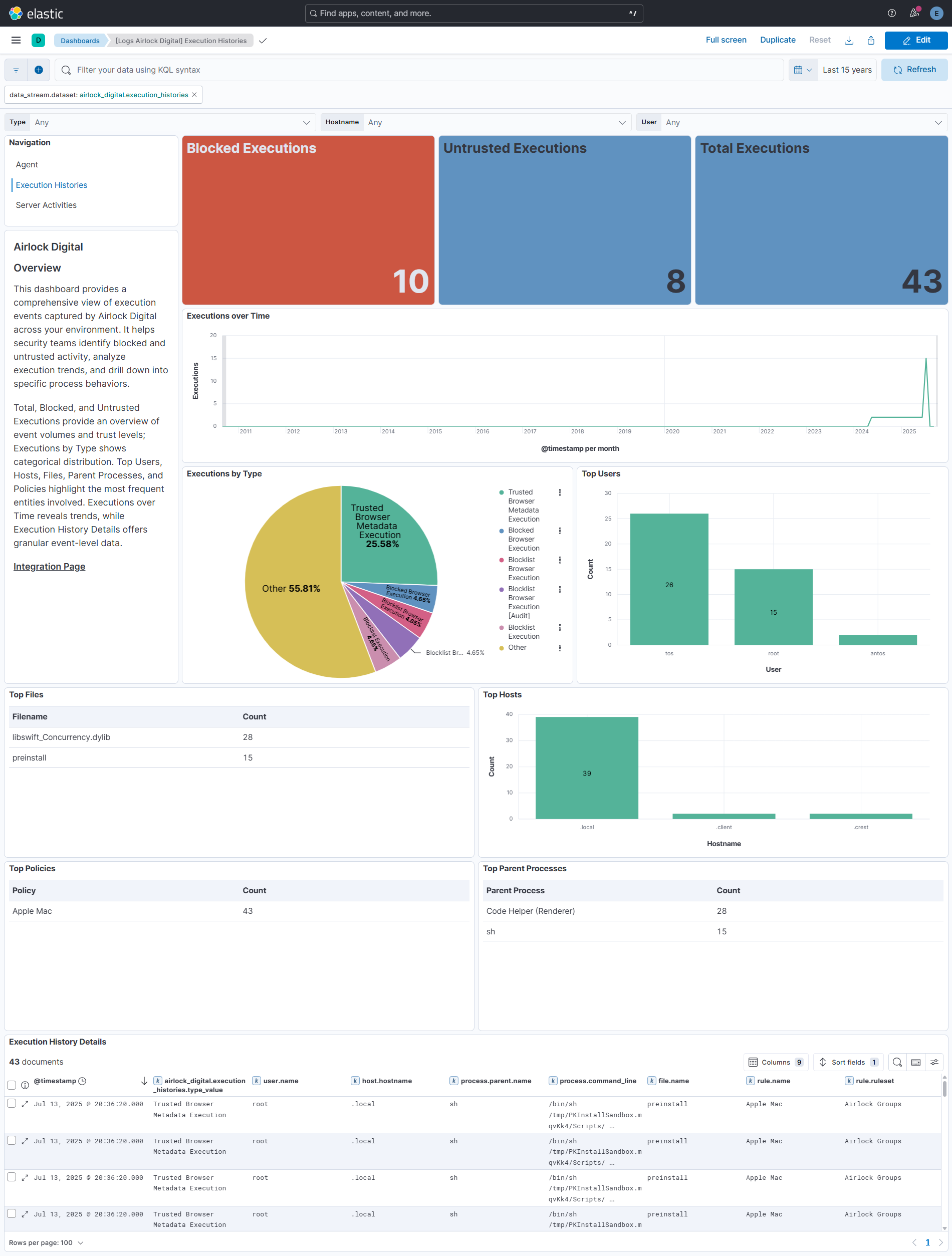

- In the top search bar in Kibana, search for Dashboards.
- In the search bar, type Airlock Digital.
- Select a dashboard for the dataset you are collecting, and verify the dashboard information is populated.
For more information on architectures that can be used for scaling this integration, check the Ingest Architectures documentation.
Exported fields
| Field | Description | Type |
|---|---|---|
| @timestamp | Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. | date |
| airlock_digital.agent.agentid | keyword | |
| airlock_digital.agent.clientversion | keyword | |
| airlock_digital.agent.domain | keyword | |
| airlock_digital.agent.freespace | long | |
| airlock_digital.agent.groupid | keyword | |
| airlock_digital.agent.hostname | keyword | |
| airlock_digital.agent.ip | ip | |
| airlock_digital.agent.lastcheckin | date | |
| airlock_digital.agent.localip | ip | |
| airlock_digital.agent.os | keyword | |
| airlock_digital.agent.poilcy_details.agentstopcode | keyword | |
| airlock_digital.agent.poilcy_details.applications.applicationid | keyword | |
| airlock_digital.agent.poilcy_details.applications.name | keyword | |
| airlock_digital.agent.poilcy_details.applications.version | keyword | |
| airlock_digital.agent.poilcy_details.auditmode | keyword | |
| airlock_digital.agent.poilcy_details.autoupdate | keyword | |
| airlock_digital.agent.poilcy_details.baselines.baselineid | keyword | |
| airlock_digital.agent.poilcy_details.baselines.name | keyword | |
| airlock_digital.agent.poilcy_details.batch | keyword | |
| airlock_digital.agent.poilcy_details.blocklists | flattened | |
| airlock_digital.agent.poilcy_details.check_ea | keyword | |
| airlock_digital.agent.poilcy_details.command | keyword | |
| airlock_digital.agent.poilcy_details.commlist.ip | ip | |
| airlock_digital.agent.poilcy_details.commlist.name | keyword | |
| airlock_digital.agent.poilcy_details.commlistid | keyword | |
| airlock_digital.agent.poilcy_details.compiledhtml | keyword | |
| airlock_digital.agent.poilcy_details.dylib | keyword | |
| airlock_digital.agent.poilcy_details.enable_notifications | keyword | |
| airlock_digital.agent.poilcy_details.extensions_enabled | keyword | |
| airlock_digital.agent.poilcy_details.generalisation | keyword | |
| airlock_digital.agent.poilcy_details.gprocesses | keyword | |
| airlock_digital.agent.poilcy_details.hashdb_ver | keyword | |
| airlock_digital.agent.poilcy_details.htmlapplication | keyword | |
| airlock_digital.agent.poilcy_details.javaapplication | keyword | |
| airlock_digital.agent.poilcy_details.javascript | keyword | |
| airlock_digital.agent.poilcy_details.modreload | keyword | |
| airlock_digital.agent.poilcy_details.name | keyword | |
| airlock_digital.agent.poilcy_details.notification_message | match_only_text | |
| airlock_digital.agent.poilcy_details.parent | keyword | |
| airlock_digital.agent.poilcy_details.paths.comment | keyword | |
| airlock_digital.agent.poilcy_details.paths.name | keyword | |
| airlock_digital.agent.poilcy_details.policyver | keyword | |
| airlock_digital.agent.poilcy_details.poll_time | keyword | |
| airlock_digital.agent.poilcy_details.powershell | keyword | |
| airlock_digital.agent.poilcy_details.pprocesses.comment | keyword | |
| airlock_digital.agent.poilcy_details.pprocesses.name | keyword | |
| airlock_digital.agent.poilcy_details.proxyauth | keyword | |
| airlock_digital.agent.poilcy_details.proxyenabled | keyword | |
| airlock_digital.agent.poilcy_details.proxypass | keyword | |
| airlock_digital.agent.poilcy_details.proxyport | long | |
| airlock_digital.agent.poilcy_details.proxyserver | keyword | |
| airlock_digital.agent.poilcy_details.proxyuser | keyword | |
| airlock_digital.agent.poilcy_details.pslockdown | keyword | |
| airlock_digital.agent.poilcy_details.publishers.comment | keyword | |
| airlock_digital.agent.poilcy_details.publishers.name | keyword | |
| airlock_digital.agent.poilcy_details.python | keyword | |
| airlock_digital.agent.poilcy_details.reflection | keyword | |
| airlock_digital.agent.poilcy_details.script_custom | keyword | |
| airlock_digital.agent.poilcy_details.script_enabled | keyword | |
| airlock_digital.agent.poilcy_details.selfservice | keyword | |
| airlock_digital.agent.poilcy_details.selfupgrade | keyword | |
| airlock_digital.agent.poilcy_details.shellscript | keyword | |
| airlock_digital.agent.poilcy_details.targetvers | flattened | |
| airlock_digital.agent.poilcy_details.trusted_config | boolean | |
| airlock_digital.agent.poilcy_details.trusted_upload | keyword | |
| airlock_digital.agent.poilcy_details.vbscript | keyword | |
| airlock_digital.agent.poilcy_details.windowsinstaller | keyword | |
| airlock_digital.agent.poilcy_details.windowsscriptcomponent | keyword | |
| airlock_digital.agent.policyversion | keyword | |
| airlock_digital.agent.status | keyword | |
| airlock_digital.agent.status_value | keyword | |
| airlock_digital.agent.username | keyword | |
| data_stream.dataset | The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.namespace | A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.type | An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. | constant_keyword |
| event.dataset | Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. | constant_keyword |
| event.module | Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. |
constant_keyword |
| input.type | Type of filebeat input. | keyword |
| log.offset | Log offset. | long |
Exported fields
| Field | Description | Type |
|---|---|---|
| @timestamp | Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. | date |
| airlock_digital.execution_histories.checkpoint | keyword | |
| airlock_digital.execution_histories.commandline | wildcard | |
| airlock_digital.execution_histories.datetime | date | |
| airlock_digital.execution_histories.filename | keyword | |
| airlock_digital.execution_histories.hostname | keyword | |
| airlock_digital.execution_histories.md5 | keyword | |
| airlock_digital.execution_histories.netdomain | keyword | |
| airlock_digital.execution_histories.policyname | keyword | |
| airlock_digital.execution_histories.policyver | keyword | |
| airlock_digital.execution_histories.ppolicy | keyword | |
| airlock_digital.execution_histories.pprocess | keyword | |
| airlock_digital.execution_histories.publisher | keyword | |
| airlock_digital.execution_histories.sha128 | keyword | |
| airlock_digital.execution_histories.sha256 | keyword | |
| airlock_digital.execution_histories.sha384 | keyword | |
| airlock_digital.execution_histories.sha512 | keyword | |
| airlock_digital.execution_histories.type | long | |
| airlock_digital.execution_histories.type_value | keyword | |
| airlock_digital.execution_histories.username | keyword | |
| data_stream.dataset | The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.namespace | A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.type | An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. | constant_keyword |
| event.dataset | Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. | constant_keyword |
| event.module | Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. |
constant_keyword |
| input.type | Type of filebeat input. | keyword |
| log.offset | Log offset. | long |
| observer.vendor | constant_keyword |
Exported fields
| Field | Description | Type |
|---|---|---|
| @timestamp | Date/time when the event originated. This is the date/time extracted from the event, typically representing when the event was generated by the source. If the event source has no original timestamp, this value is typically populated by the first time the event was received by the pipeline. Required field for all events. | date |
| airlock_digital.server_activities.checkpoint | keyword | |
| airlock_digital.server_activities.datetime | date | |
| airlock_digital.server_activities.description | match_only_text | |
| airlock_digital.server_activities.task | keyword | |
| airlock_digital.server_activities.user | keyword | |
| data_stream.dataset | The field can contain anything that makes sense to signify the source of the data. Examples include nginx.access, prometheus, endpoint etc. For data streams that otherwise fit, but that do not have dataset set we use the value "generic" for the dataset value. event.dataset should have the same value as data_stream.dataset. Beyond the Elasticsearch data stream naming criteria noted above, the dataset value has additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.namespace | A user defined namespace. Namespaces are useful to allow grouping of data. Many users already organize their indices this way, and the data stream naming scheme now provides this best practice as a default. Many users will populate this field with default. If no value is used, it falls back to default. Beyond the Elasticsearch index naming criteria noted above, namespace value has the additional restrictions: * Must not contain - * No longer than 100 characters |
constant_keyword |
| data_stream.type | An overarching type for the data stream. Currently allowed values are "logs" and "metrics". We expect to also add "traces" and "synthetics" in the near future. | constant_keyword |
| event.dataset | Name of the dataset. If an event source publishes more than one type of log or events (e.g. access log, error log), the dataset is used to specify which one the event comes from. It's recommended but not required to start the dataset name with the module name, followed by a dot, then the dataset name. | constant_keyword |
| event.module | Name of the module this data is coming from. If your monitoring agent supports the concept of modules or plugins to process events of a given source (e.g. Apache logs), event.module should contain the name of this module. |
constant_keyword |
| input.type | Type of filebeat input. | keyword |
| log.offset | Log offset. | long |
| observer.vendor | Vendor name of the observer. | constant_keyword |
Example
{
"@timestamp": "2025-07-18T11:36:13.765Z",
"agent": {
"ephemeral_id": "a40ebbf9-2532-4acc-804a-fdcc504b24a1",
"id": "0bf78263-441b-45d7-a41d-9c1fccbdbe71",
"name": "elastic-agent-31314",
"type": "filebeat",
"version": "8.18.0"
},
"airlock_digital": {
"agent": {
"agentid": "b12a9d5f-d3fc-4893-8dc3-9e2982e732f1",
"clientversion": "5.3.0.0",
"domain": "CORP-WORKSTATION",
"freespace": 61,
"groupid": "f5c9a3b4-09df-4eae-bf7d-72ab9850138d",
"hostname": "CORP-WORKSTATION",
"ip": "175.16.199.1",
"lastcheckin": "2024-04-29T15:12:17.001Z",
"localip": "175.16.199.254",
"os": "Windows 11 x64 (Release: 23H2)",
"poilcy_details": {
"applications": [
{
"applicationid": "1570641682",
"name": "Airlock Enforcement Agents"
}
],
"auditmode": "0",
"autoupdate": "0",
"baselines": [
{
"baselineid": "1567253648",
"name": "Windows 10 1903 x64 May 2019 (Reference)"
},
{
"baselineid": "1569941628",
"name": "Windows 10 1803 x64 May 2019 (Reference)"
},
{
"baselineid": "1597574944",
"name": "Windows 10 2004 x86 RTM (Reference)"
}
],
"batch": "1",
"check_ea": "0",
"command": "1",
"commlist": [
{
"ip": "81.2.69.143",
"name": "test.server.com"
}
],
"commlistid": "airlock-default-communication-list",
"compiledhtml": "1",
"dylib": "0",
"enable_notifications": "1",
"extensions_enabled": "0",
"generalisation": "0",
"hashdb_ver": "215",
"htmlapplication": "1",
"javaapplication": "1",
"javascript": "1",
"modreload": "0",
"name": "ADL Workstations",
"notification_message": "%filename% has been prevented from executing as a result of Application Whitelisting. If this event caused unexpected system behaviour please contact your Administrator",
"parent": "Airlock Groups",
"paths": [
{
"name": "C:\\\\Windows\\\\assembly\\\\GAC*\\\\*\\\\*.*.*_*\\\\*.dll"
},
{
"name": "C:\\\\Windows\\\\Temp\\\\__PSScriptPolicyTest_????????.???.ps1"
},
{
"name": "C:\\\\Users\\\\*\\\\AppData\\\\Local\\\\Temp\\\\__PSScriptPolicyTest_????????.???.ps1"
}
],
"policyver": "316",
"poll_time": "600",
"powershell": "1",
"pprocesses": [
{
"comment": "comment on inherited proc",
"name": "testprocInherited.exe"
}
],
"proxyauth": "0",
"proxyenabled": "0",
"pslockdown": "0",
"publishers": [
{
"name": "Microsoft Corporation"
},
{
"name": "Microsoft Dynamic Code Publisher"
},
{
"name": "Microsoft Windows"
}
],
"python": "1",
"reflection": "0",
"script_custom": "0",
"script_enabled": "2",
"selfservice": "0",
"selfupgrade": "0",
"shellscript": "0",
"targetvers": [
{
"macos": "6.1.0.8047"
}
],
"trusted_config": false,
"trusted_upload": "0",
"vbscript": "1",
"windowsinstaller": "1",
"windowsscriptcomponent": "1"
},
"policyversion": "9.1",
"status": "3",
"status_value": "Safemode",
"username": "jane.doe"
}
},
"data_stream": {
"dataset": "airlock_digital.agent",
"namespace": "98907",
"type": "logs"
},
"ecs": {
"version": "8.17.0"
},
"elastic_agent": {
"id": "0bf78263-441b-45d7-a41d-9c1fccbdbe71",
"snapshot": false,
"version": "8.18.0"
},
"event": {
"agent_id_status": "verified",
"category": [
"host"
],
"dataset": "airlock_digital.agent",
"ingested": "2025-07-18T11:36:16Z",
"kind": "event",
"original": "{\"agentid\":\"b12a9d5f-d3fc-4893-8dc3-9e2982e732f1\",\"clientversion\":\"5.3.0.0\",\"domain\":\"CORP-WORKSTATION\",\"freespace\":\"61\",\"groupid\":\"f5c9a3b4-09df-4eae-bf7d-72ab9850138d\",\"hostname\":\"CORP-WORKSTATION\",\"ip\":\"175.16.199.1\",\"lastcheckin\":\"2024-04-29T15:12:17.001Z\",\"localip\":\"175.16.199.254\",\"os\":\"Windows 11 x64 (Release: 23H2)\",\"policy_details\":{\"agentstopcode\":\"\",\"applications\":[{\"applicationid\":\"1570641682\",\"name\":\"Airlock Enforcement Agents\",\"version\":\"\"}],\"auditmode\":0,\"autoupdate\":0,\"baselines\":[{\"baselineid\":\"1567253648\",\"name\":\"Windows 10 1903 x64 May 2019 (Reference)\"},{\"baselineid\":\"1569941628\",\"name\":\"Windows 10 1803 x64 May 2019 (Reference)\"},{\"baselineid\":\"1597574944\",\"name\":\"Windows 10 2004 x86 RTM (Reference)\"}],\"batch\":1,\"blocklists\":null,\"check_ea\":0,\"command\":1,\"commlist\":[{\"ip\":\"81.2.69.143\",\"name\":\"test.server.com\"}],\"commlistid\":\"airlock-default-communication-list\",\"compiledhtml\":1,\"dylib\":0,\"enable_notifications\":1,\"extensions_enabled\":0,\"generalisation\":0,\"gprocesses\":null,\"groupid\":\"f5c9a3b4-09df-4eae-bf7d-72ab9850138d\",\"hashdb_ver\":\"215\",\"htmlapplication\":1,\"javaapplication\":1,\"javascript\":1,\"modreload\":0,\"name\":\"ADL Workstations\",\"notification_message\":\"%filename% has been prevented from executing as a result of Application Whitelisting. If this event caused unexpected system behaviour please contact your Administrator\",\"parent\":\"Airlock Groups\",\"paths\":[{\"comment\":\"\",\"name\":\"C:\\\\\\\\Windows\\\\\\\\assembly\\\\\\\\GAC*\\\\\\\\*\\\\\\\\*.*.*_*\\\\\\\\*.dll\"},{\"comment\":\"\",\"name\":\"C:\\\\\\\\Windows\\\\\\\\Temp\\\\\\\\__PSScriptPolicyTest_????????.???.ps1\"},{\"comment\":\"\",\"name\":\"C:\\\\\\\\Users\\\\\\\\*\\\\\\\\AppData\\\\\\\\Local\\\\\\\\Temp\\\\\\\\__PSScriptPolicyTest_????????.???.ps1\"}],\"policyver\":\"316\",\"poll_time\":600,\"powershell\":1,\"pprocesses\":[{\"comment\":\"comment on inherited proc\",\"name\":\"testprocInherited.exe\"}],\"proxyauth\":0,\"proxyenabled\":0,\"proxypass\":\"\",\"proxyport\":\"\",\"proxyserver\":\"\",\"proxyuser\":\"\",\"pslockdown\":0,\"publishers\":[{\"comment\":\"\",\"name\":\"Microsoft Corporation\"},{\"comment\":\"\",\"name\":\"Microsoft Dynamic Code Publisher\"},{\"comment\":\"\",\"name\":\"Microsoft Windows\"}],\"python\":1,\"reflection\":0,\"script_custom\":0,\"script_enabled\":2,\"selfservice\":0,\"selfupgrade\":0,\"shellscript\":0,\"targetvers\":[{\"linux\":\"\",\"macos\":\"6.1.0.8047\",\"windows\":\"\"}],\"trusted_config\":false,\"trusted_upload\":0,\"vbscript\":1,\"windowsinstaller\":1,\"windowsscriptcomponent\":1},\"policyversion\":\"9.1\",\"status\":3,\"username\":\"jane.doe\"}",
"type": [
"info"
]
},
"file": {
"path": [
"C:\\\\Windows\\\\assembly\\\\GAC*\\\\*\\\\*.*.*_*\\\\*.dll",
"C:\\\\Windows\\\\Temp\\\\__PSScriptPolicyTest_????????.???.ps1",
"C:\\\\Users\\\\*\\\\AppData\\\\Local\\\\Temp\\\\__PSScriptPolicyTest_????????.???.ps1"
]
},
"host": {
"domain": "CORP-WORKSTATION",
"hostname": "CORP-WORKSTATION",
"id": "b12a9d5f-d3fc-4893-8dc3-9e2982e732f1",
"ip": [
"175.16.199.1"
],
"os": {
"full": "Windows 11 x64 (Release: 23H2)",
"name": "Windows",
"type": "windows"
}
},
"input": {
"type": "cel"
},
"message": "%filename% has been prevented from executing as a result of Application Whitelisting. If this event caused unexpected system behaviour please contact your Administrator",
"observer": {
"vendor": "Airlock Digital"
},
"process": {
"parent": {
"name": [
"testprocInherited.exe"
]
}
},
"related": {
"hosts": [
"CORP-WORKSTATION"
],
"ip": [
"175.16.199.1",
"175.16.199.254",
"81.2.69.143"
],
"user": [
"jane.doe"
]
},
"rule": {
"id": "f5c9a3b4-09df-4eae-bf7d-72ab9850138d",
"name": "ADL Workstations",
"version": "9.1"
},
"tags": [
"preserve_original_event",
"preserve_duplicate_custom_fields",
"forwarded",
"airlock_digital-agent"
],
"user": {
"name": "jane.doe"
}
}
Example
{
"@timestamp": "2024-04-26T14:50:56.000Z",
"agent": {
"ephemeral_id": "ae2126f1-1a8f-4383-baab-7ecbc8364038",
"id": "a027ef38-2388-4bae-8674-f9fb7d1b3f4f",
"name": "elastic-agent-18000",
"type": "filebeat",
"version": "8.18.0"
},
"airlock_digital": {
"execution_histories": {
"checkpoint": "firstcheckpoint",
"commandline": "/bin/sh /tmp/PKInstallSandbox.mqvKk4/Scripts/ /Library/Airlock Digital / /",
"datetime": "2024-04-26T14:50:56.000Z",
"filename": "/tmp/PKInstallSandbox.mqvKk4/preinstall",
"hostname": ".local",
"netdomain": ".local",
"policyname": "Apple Mac",
"policyver": "v485",
"ppolicy": "Airlock Groups",
"pprocess": "sh",
"publisher": "Airlock Digital Pty Ltd (MXRN6N7XFL) (Mac)",
"sha256": "a3f791dec1f2a40bd623a9b37604e7f2dee84eab3f6a513c6882231d89037c40",
"type": 1,
"type_value": "Blocked Execution",
"username": "root"
}
},
"data_stream": {
"dataset": "airlock_digital.execution_histories",
"namespace": "47590",
"type": "logs"
},
"ecs": {
"version": "8.17.0"
},
"elastic_agent": {
"id": "a027ef38-2388-4bae-8674-f9fb7d1b3f4f",
"snapshot": false,
"version": "8.18.0"
},
"event": {
"agent_id_status": "verified",
"category": [
"host"
],
"dataset": "airlock_digital.execution_histories",
"id": "firstcheckpoint",
"ingested": "2025-09-09T09:00:34Z",
"kind": "event",
"original": "{\"checkpoint\":\"firstcheckpoint\",\"commandline\":\"/bin/sh /tmp/PKInstallSandbox.mqvKk4/Scripts/ /Library/Airlock Digital / /\",\"datetime\":\"2024-04-26T14:50:56Z\",\"filename\":\"/tmp/PKInstallSandbox.mqvKk4/preinstall\",\"hostname\":\".local\",\"md5\":\"\",\"netdomain\":\".local\",\"policyname\":\"Apple Mac\",\"policyver\":\"v485\",\"ppolicy\":\"Airlock Groups\",\"pprocess\":\"sh\",\"publisher\":\"Airlock Digital Pty Ltd (MXRN6N7XFL) (Mac)\",\"sha128\":\"\",\"sha256\":\"a3f791dec1f2a40bd623a9b37604e7f2dee84eab3f6a513c6882231d89037c40\",\"sha384\":\"\",\"sha512\":\"\",\"type\":1,\"username\":\"root\"}",
"type": [
"info"
]
},
"file": {
"name": "preinstall",
"path": "/tmp/PKInstallSandbox.mqvKk4/preinstall"
},
"host": {
"hostname": ".local"
},
"input": {
"type": "cel"
},
"process": {
"command_line": "/bin/sh /tmp/PKInstallSandbox.mqvKk4/Scripts/ /Library/Airlock Digital / /",
"hash": {
"sha256": "a3f791dec1f2a40bd623a9b37604e7f2dee84eab3f6a513c6882231d89037c40"
},
"parent": {
"name": "sh"
}
},
"related": {
"hash": [
"a3f791dec1f2a40bd623a9b37604e7f2dee84eab3f6a513c6882231d89037c40"
],
"hosts": [
".local"
],
"user": [
"root"
]
},
"rule": {
"name": "Apple Mac",
"ruleset": "Airlock Groups",
"version": "v485"
},
"tags": [
"preserve_original_event",
"preserve_duplicate_custom_fields",
"forwarded",
"airlock_digital-execution_histories"
],
"user": {
"name": "root"
}
}
Example
{
"@timestamp": "2024-01-25T05:23:30.880Z",
"agent": {
"ephemeral_id": "3b5328f7-d71f-4e8e-ada8-a29cc4086ba6",
"id": "2dac65cf-837f-4ccf-b441-1ff021ba8529",
"name": "elastic-agent-48732",
"type": "filebeat",
"version": "8.18.0"
},
"airlock_digital": {
"server_activities": {
"checkpoint": "thirdcheckpoint",
"datetime": "2024-01-25T05:23:30.880Z",
"description": "DESKTOP-GG4CEJM checks in",
"task": "Client Checkin",
"user": "SYSTEM"
}
},
"data_stream": {
"dataset": "airlock_digital.server_activities",
"namespace": "79666",
"type": "logs"
},
"ecs": {
"version": "8.17.0"
},
"elastic_agent": {
"id": "2dac65cf-837f-4ccf-b441-1ff021ba8529",
"snapshot": false,
"version": "8.18.0"
},
"event": {
"action": "client-checkin",
"agent_id_status": "verified",
"category": [
"host"
],
"dataset": "airlock_digital.server_activities",
"id": "thirdcheckpoint",
"ingested": "2025-07-16T09:50:13Z",
"kind": "event",
"original": "{\"checkpoint\":\"thirdcheckpoint\",\"datetime\":\"2024-01-25T05:23:30.88Z\",\"description\":\"DESKTOP-GG4CEJM checks in\",\"task\":\"Client Checkin\",\"user\":\"SYSTEM\"}",
"type": [
"info"
]
},
"input": {
"type": "cel"
},
"message": "DESKTOP-GG4CEJM checks in",
"related": {
"user": [
"SYSTEM"
]
},
"tags": [
"preserve_original_event",
"preserve_duplicate_custom_fields",
"forwarded",
"airlock_digital-server_activities"
],
"user": {
"name": "SYSTEM"
}
}
These inputs can be used in this integration:
These integration datasets use the following APIs:
Agent: Airlock Digital REST API.Execution Histories: Airlock Digital REST API. Supported execution types are:- Trusted Execution
- Blocked Execution
- Untrusted Execution [Audit]
- Untrusted Execution [OTP]
- Trusted Path Execution
- Trusted Publisher Execution
- Blocklist Execution
- Blocklist Execution [Audit]
- Trusted Process Execution
- Constrained Execution
- Trusted Metadata Execution
- Trusted Browser Execution
- Blocked Browser Execution
- Untrusted Browser Execution [Audit]
- Untrusted Browser Execution [OTP]
- Blocklist Browser Execution [Audit]
- Blocklist Browser Execution
- Trusted Installer Execution
- Trusted Browser Metadata Execution
Server Activities: Airlock Digital REST API.
This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.
Changelog
| Version | Details | Kibana version(s) |
|---|---|---|
| 0.3.0 | Enhancement (View pull request) Add server activities data stream. |
— |
| 0.2.0 | Enhancement (View pull request) Add execution histories data stream. |
— |
| 0.1.0 | Enhancement (View pull request) Initial release. |
— |
