Azure Storage Account Integration

Serverless Observability Serverless Security Stack 9.1.5

The Azure Storage Account data stream collects and aggregates storage account related metrics from Azure Storage Account type resources where it can be used for analysis, visualization, and alerting. The Azure Storage Account will periodically retrieve the Azure Monitor metrics using the Azure REST APIs as MetricList. Additional Azure API calls will be executed to retrieve information regarding the resources targeted by the user.

Before you start, check the Authentication and costs section.

Follow these step-by-step instructions on how to set up an Azure metrics integration.

Period:: (string) Reporting interval. Metrics will have a timegrain of 5 minutes, so the Period configuration option for storage_account should have a value of 300s or multiple of 300sfor relevant results.

Resource IDs:: ([]string) The fully qualified ID's of the resource, including the resource name and resource type. Has the format /subscriptions/{guid}/resourceGroups/{resource-group-name}/providers/{resource-provider-namespace}/{resource-type}/{resource-name}. Should return a list of resources.

Resource Groups:: ([]string) This option will return all storage accounts inside the resource group.

Service Types:: ([]string) The service type values allowed are blob, table, queue, file, they can be used to filter on the type of the storage account container.

Default Timegrain:: (string) Sets the default time grain to use when collecting storage account metrics. Defaults to PT5M.

To collect storage account metrics with a PT1M time grain, we recommend using one of the following configurations:

These two configurations trade off scalability and freshness. The first configuration (PT1M/60s) prioritizes freshness over scalability, while second configuration (PT1M/300s) prioritizes scalability over freshness.

If you want to collect metrics with PT1M time grain, we also suggest the following changes:

• Turn on "Advanced options > Enable Batch API": Retrieves metric values for multiple Azure resources in one API call, supporting more storage accounts.
• Set "Refresh list interval" to 30m or 60m: Looks for new storage accounts every 30 or 60 minutes instead of 10 minutes, helping to minimize gaps when monitoring many storage accounts.

If no resource filter is specified, then all storage accounts inside the subscription will be considered.

The primary aggregation value will be retrieved for all the metrics contained in the namespaces. The aggregation options are avg, sum, min, max, total, count.

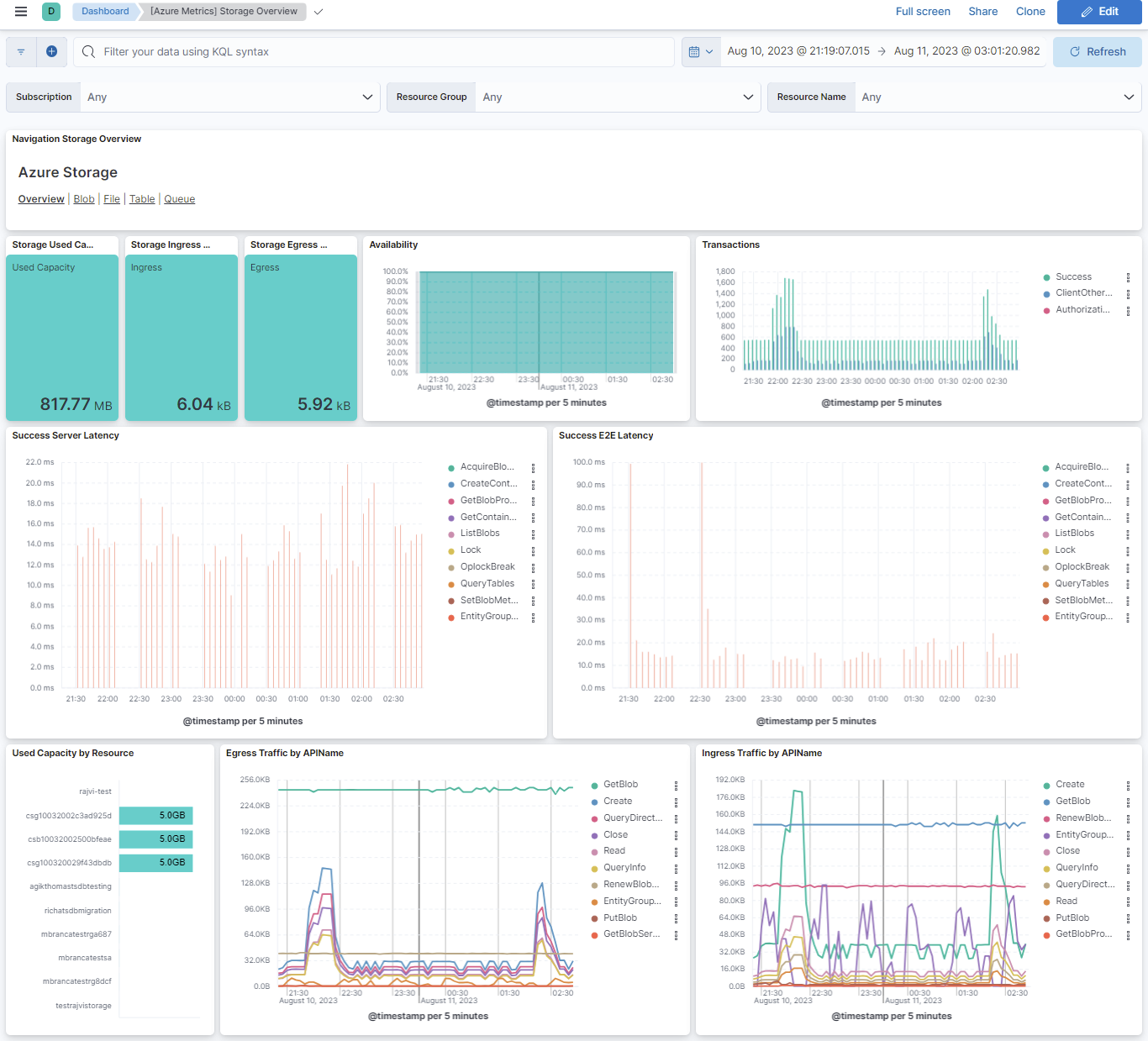

This integration includes one or more Kibana dashboards that visualizes the data collected by the integration. The screenshots below illustrate how the ingested data is displayed.

×
